About me
Yap wai kit
01
AquaCube
DeployMate
02
Betta
Response
03
Simple Aqua
04
Miscellaneous
AquaCube
Deploymate

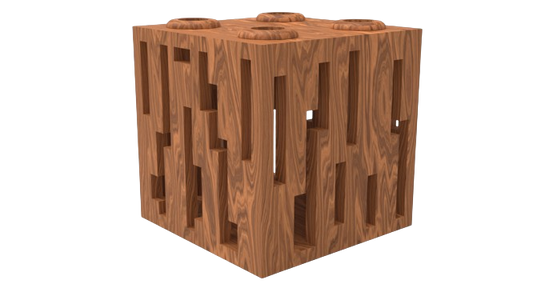

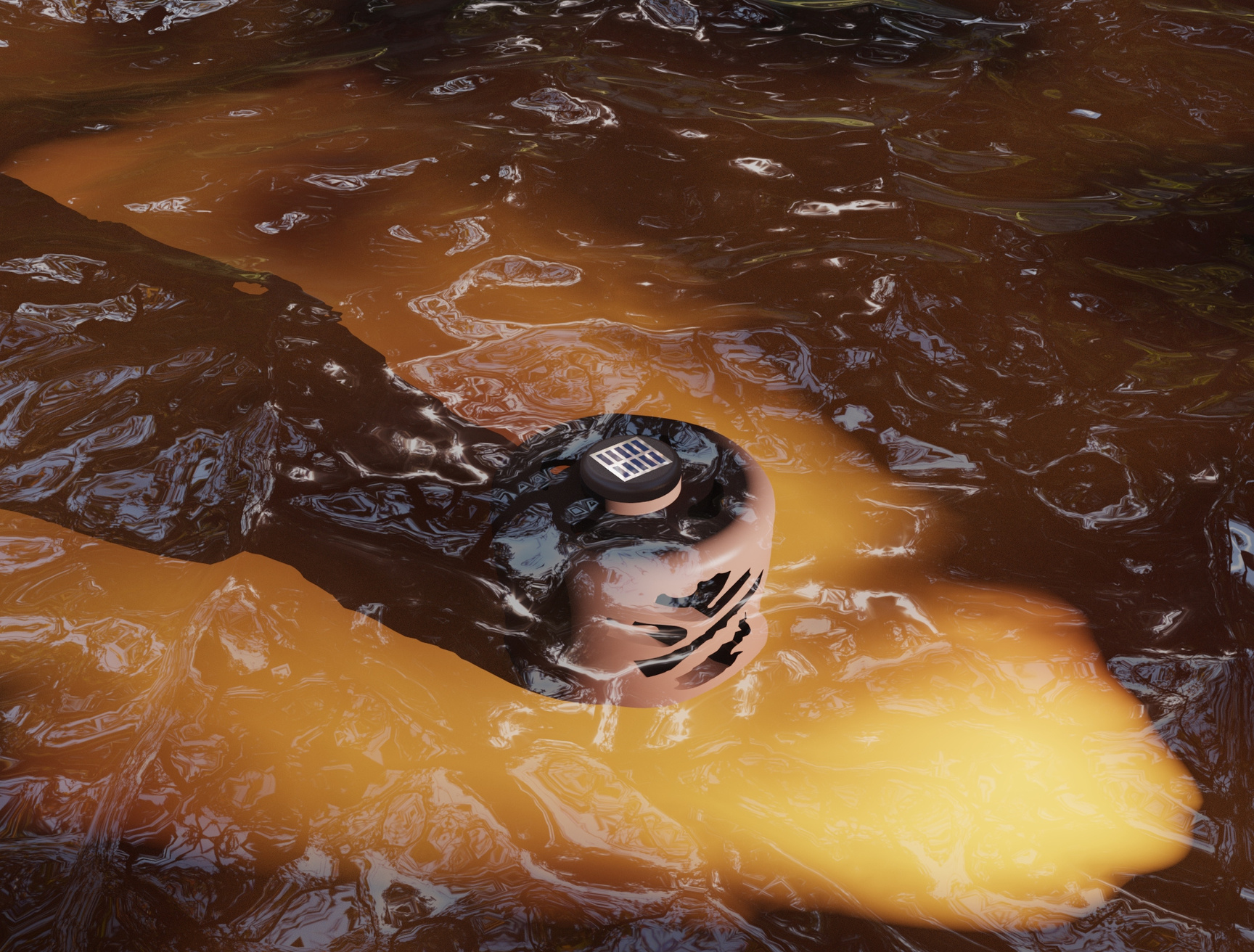

AquaCube is the artificial shelter for the fish underwater and the DeployMate is for the Bluetooth controlled boat to deploy the AquaCube. The shelter will be released into the water by the carrier and it will sink to the
bottom onto the substrate where it will
provide a hiding place for the
smaller fish that will most likely
be consumed by
larger predators.
Design features

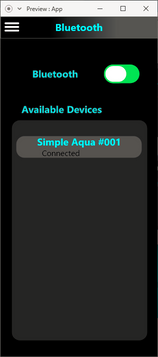

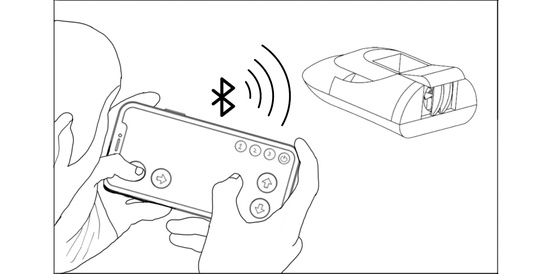

Shown bluetooth connected to the Bluetooth-connected boat from the tablet

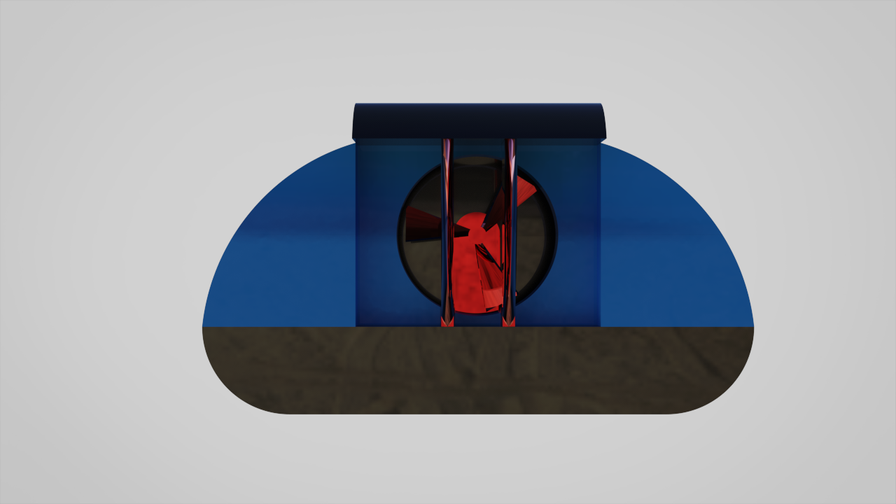

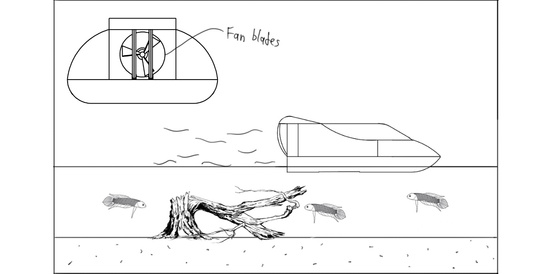

The fan on the boat accelerating to its location without disturbing the substrate and the rudders in front of the fan maneuvering the boat.

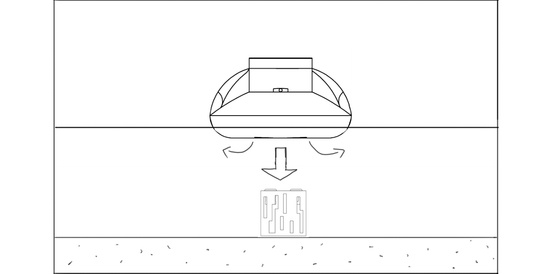

Arriving at its destination, releasing the hatches, dropping and sinking down the Cube Shelter
The filter pump can be
open up to clean out the filter

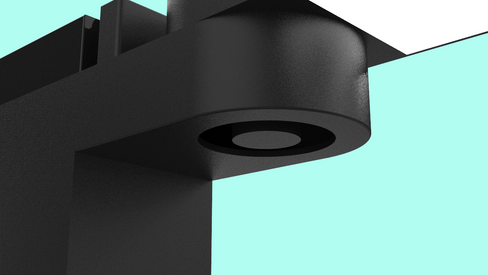

Overhead LED Light
Can be set by the timer on the App
The overhead can be
turned 90 degrees out to put in or take out anything from inside the aquarium

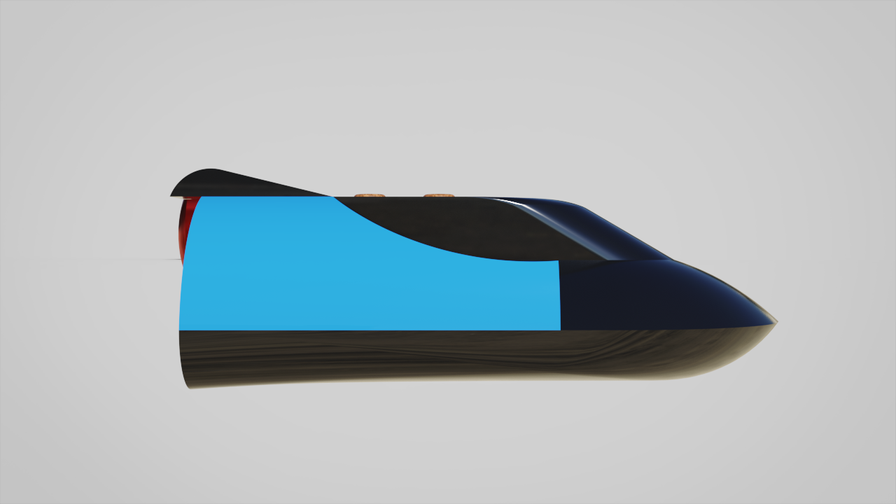

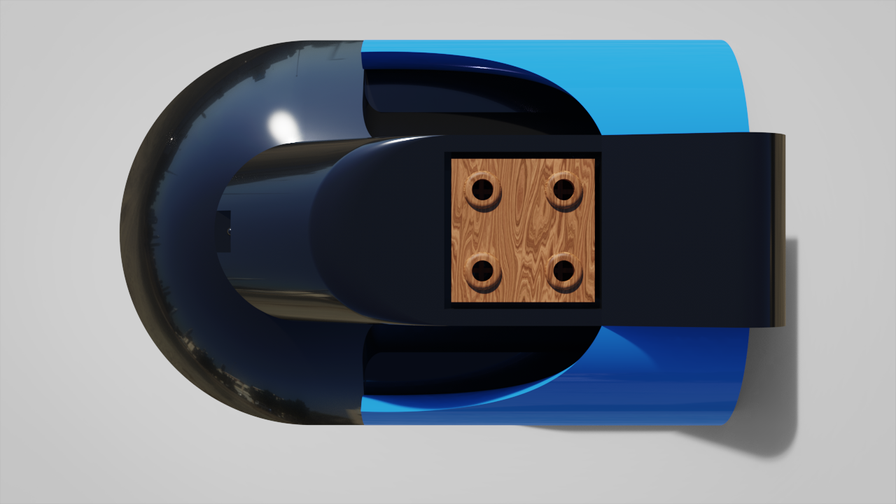

3D Render

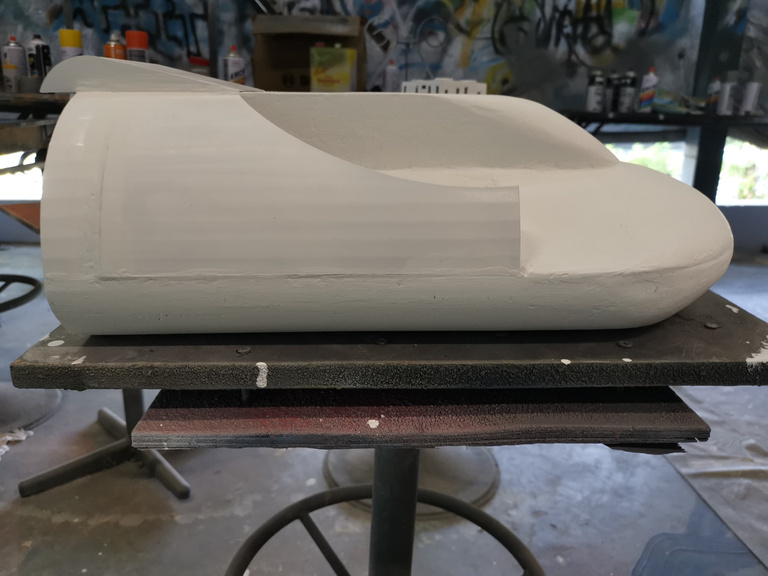

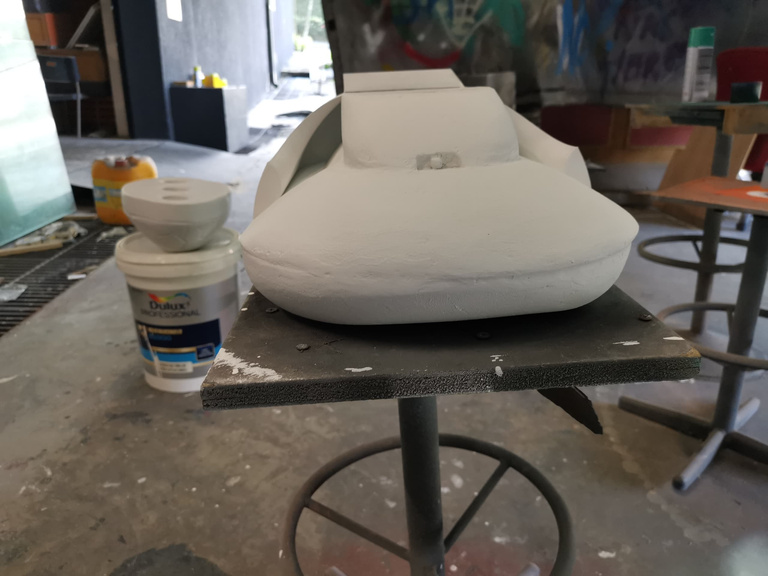

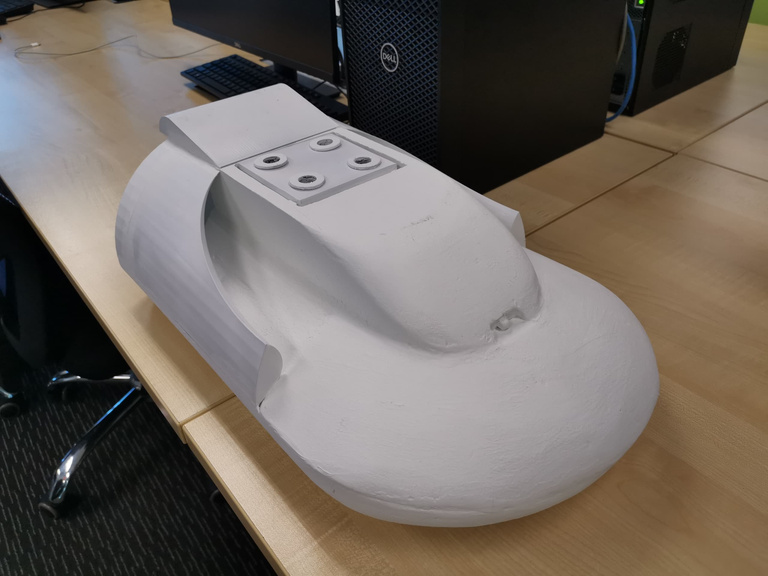

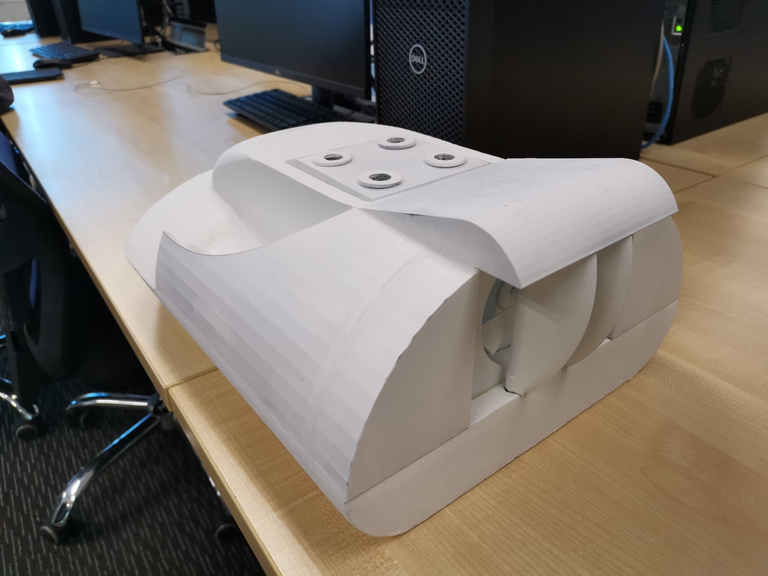

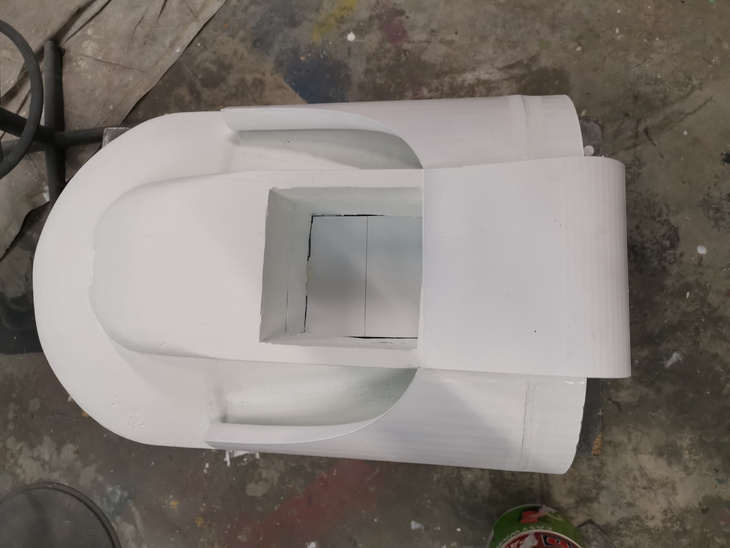

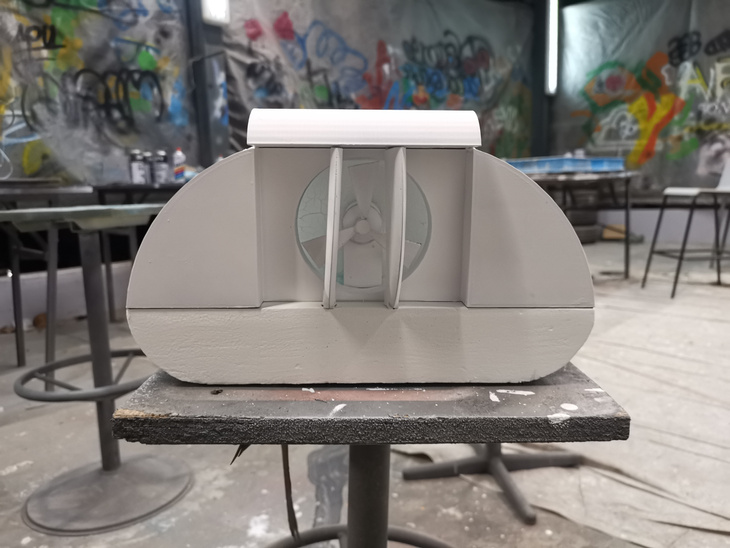

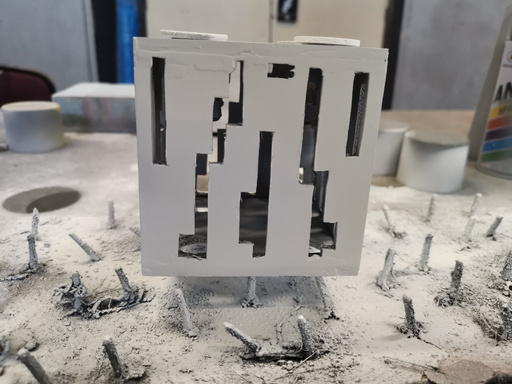

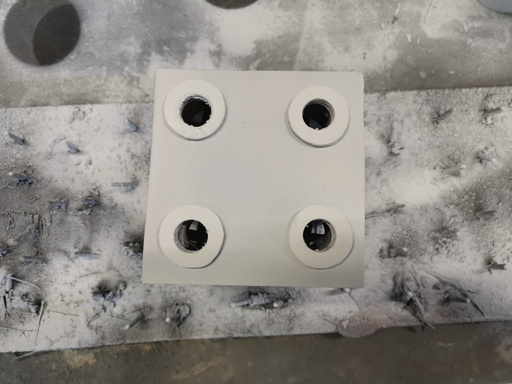

Scale 1:3 Mock Up
bETTA
rESPONSE

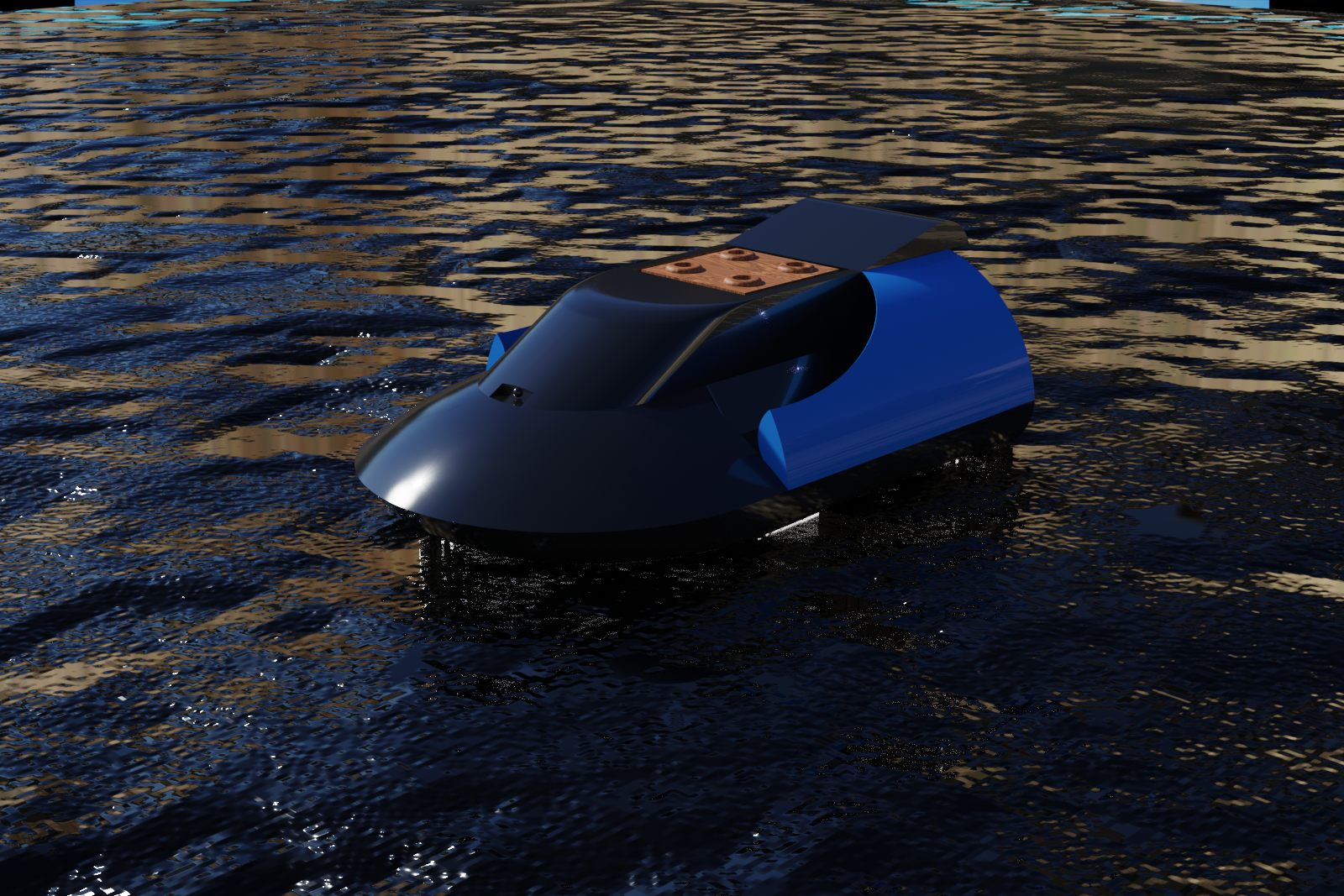

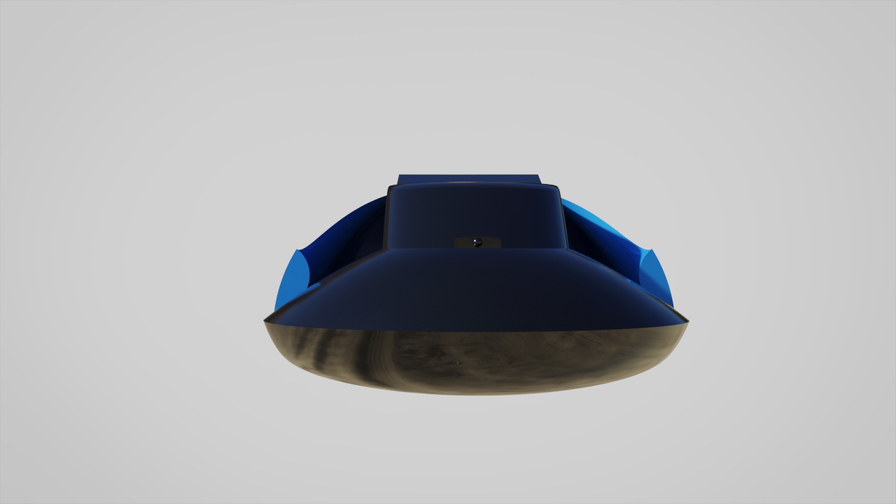

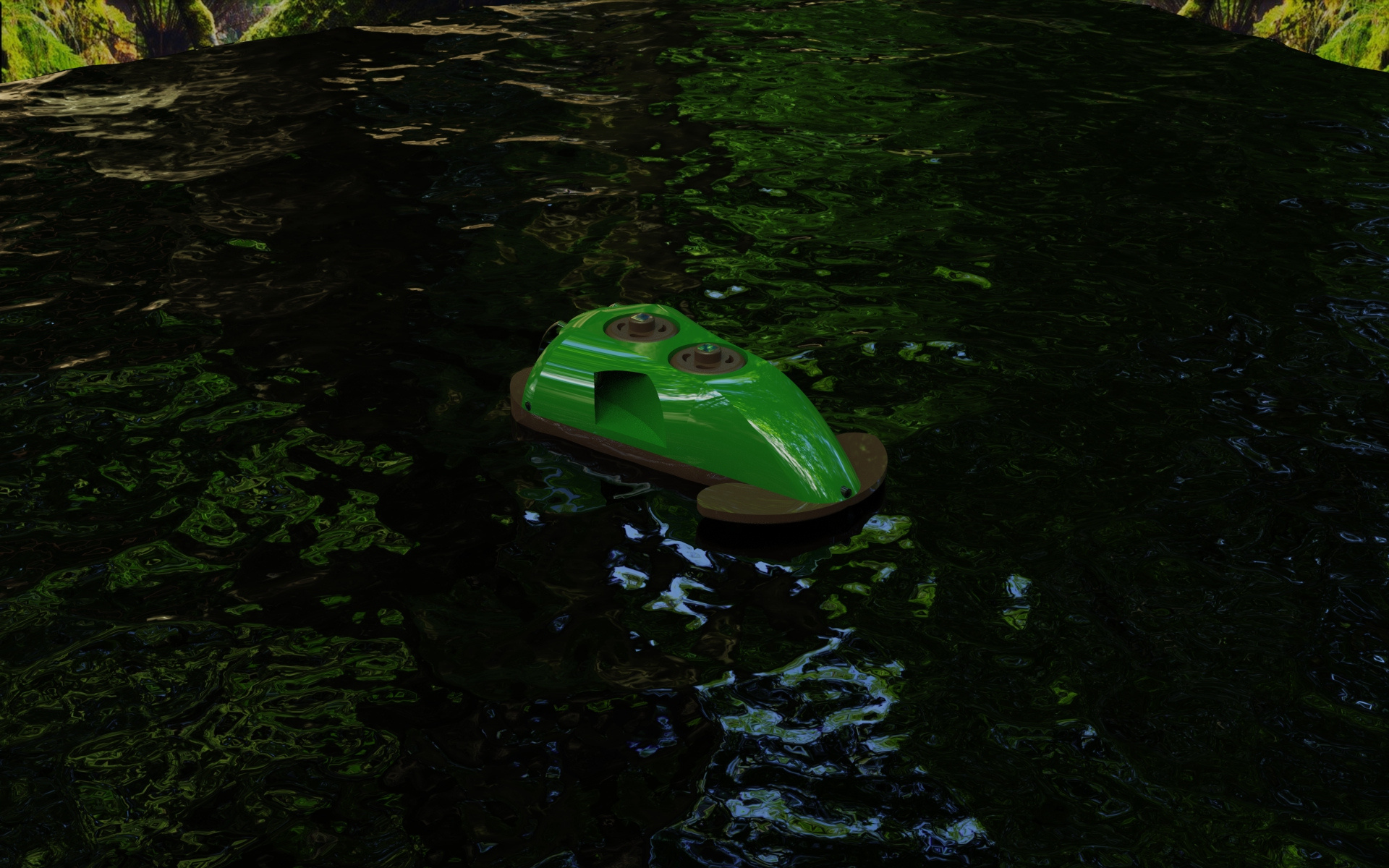

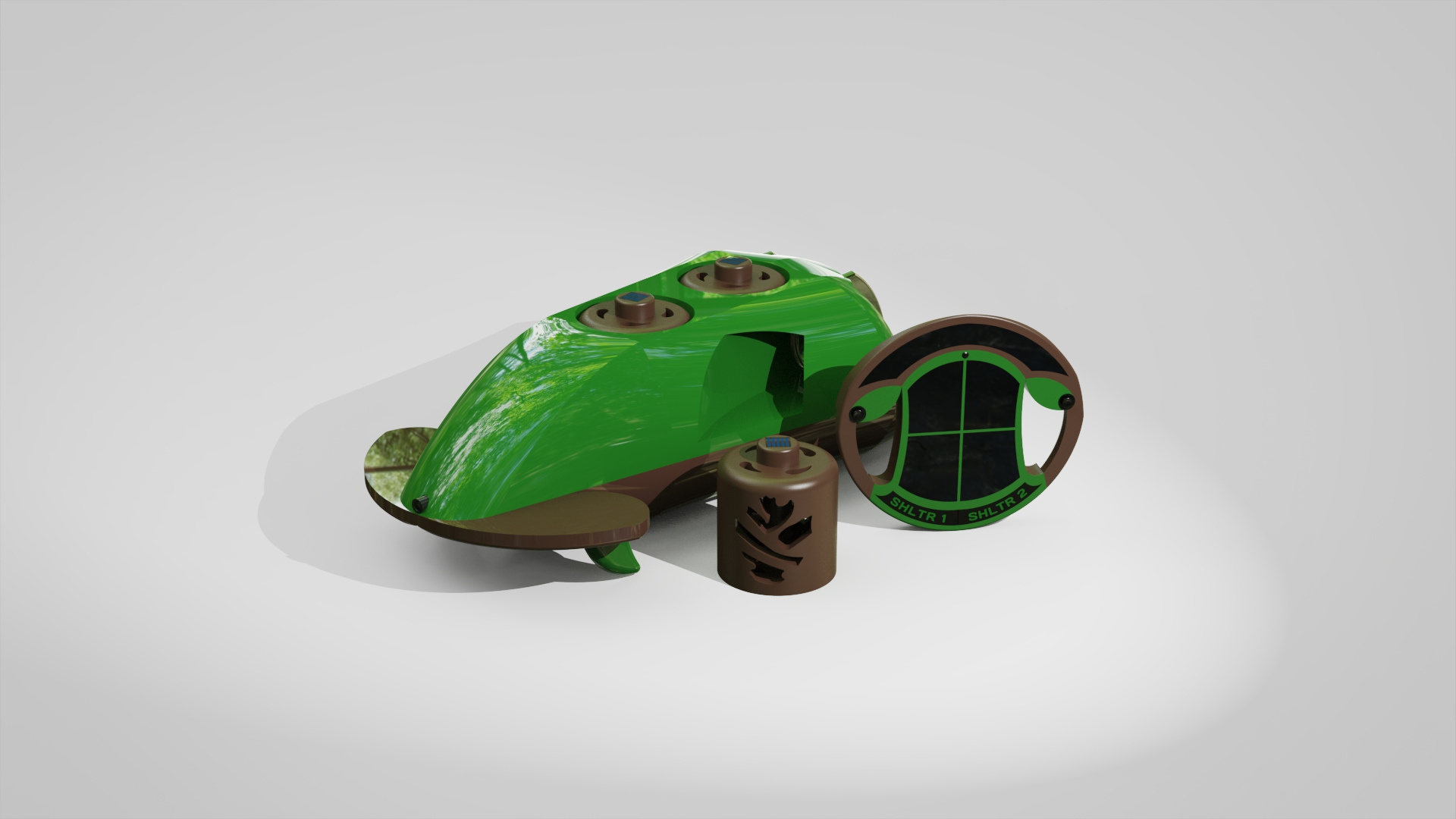

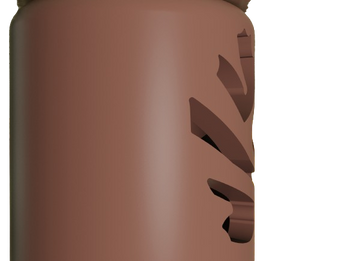

A new and improved version of AquaCube from above called Betta Response. It has a new artificial shelter design for smaller fish to enter specifically for the Native Betta Fish and a newly designed carrier for better aerodynamic, maneuverability and handling. The carrier can now released two shelters and can be controlled from a remote control.
06
Functions
Sensors
Thrusters
Maneuverability

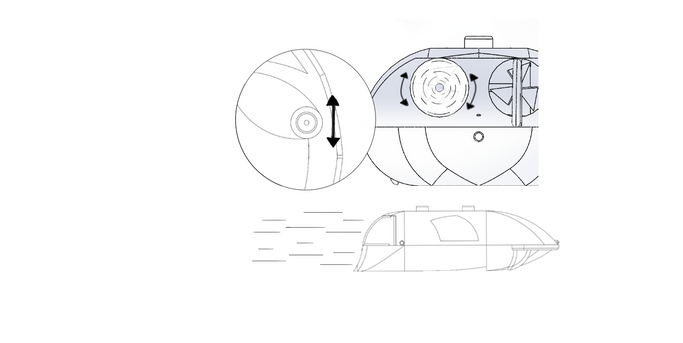

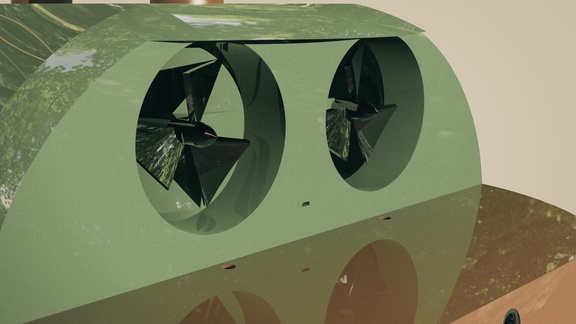

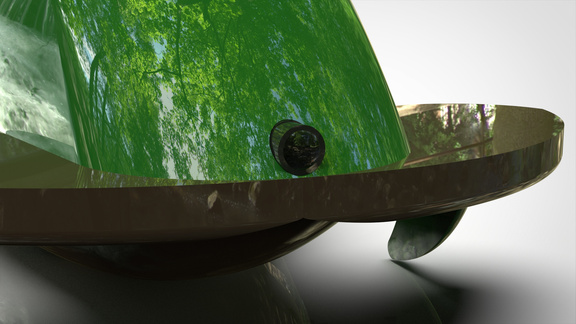

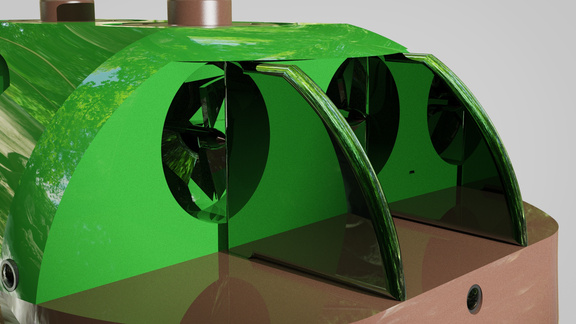

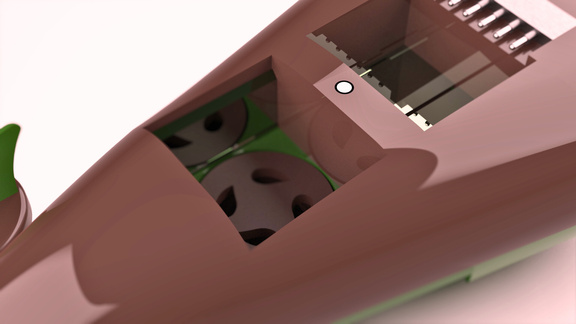

Two fan thrusters in the rear of the carrier to for acceleration and to move the carrier

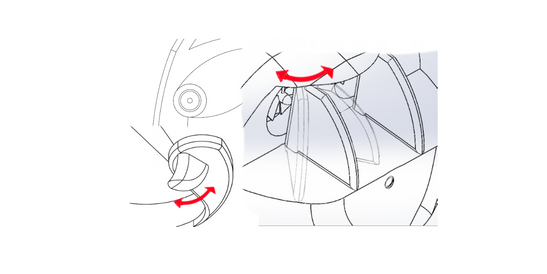

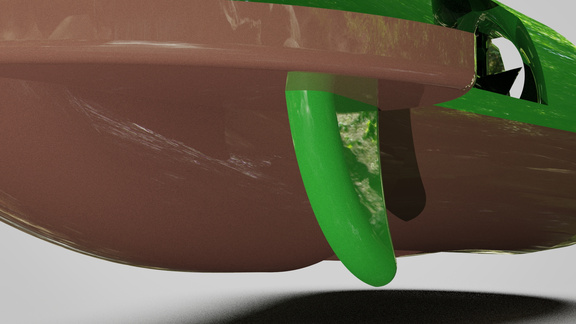

Steering maneuverability from the the underwater fins at the front and the fan rudders in the rear.

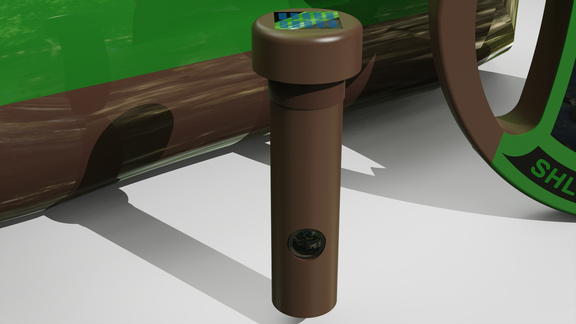

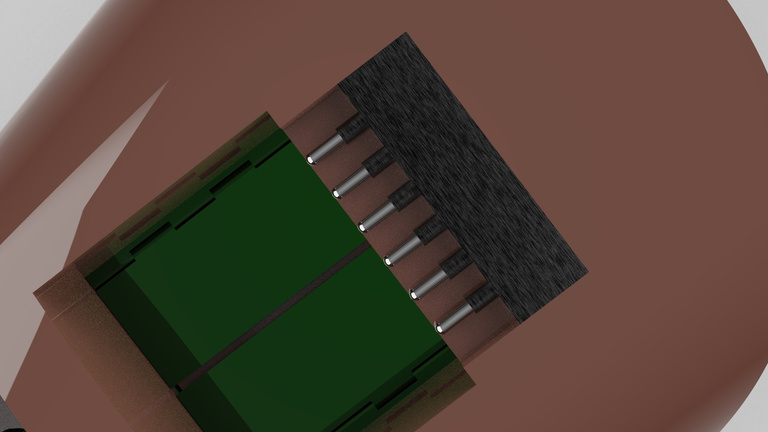

Sensors under the carrier to measure the water parameters and will show the data on the top screen of the remote controller
06
Functions

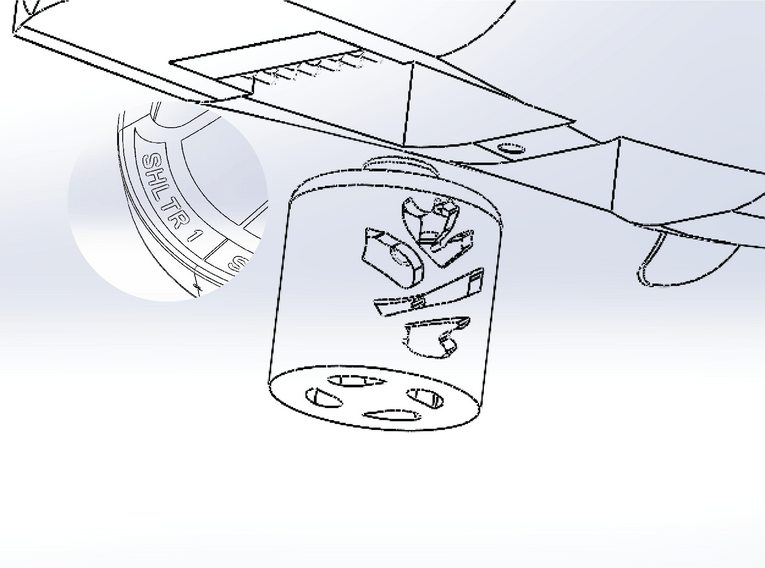

Flaps hinges in the center of the carrier to release the two shelters
There are cameras on each side of the carrier and in the shelter that you can view on the screens on the remote control
Cameras

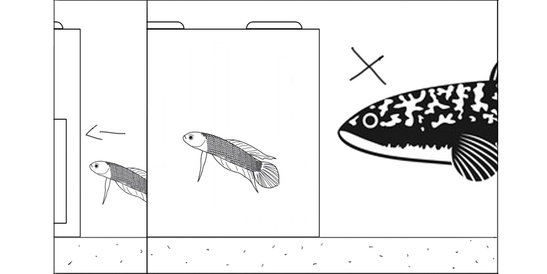

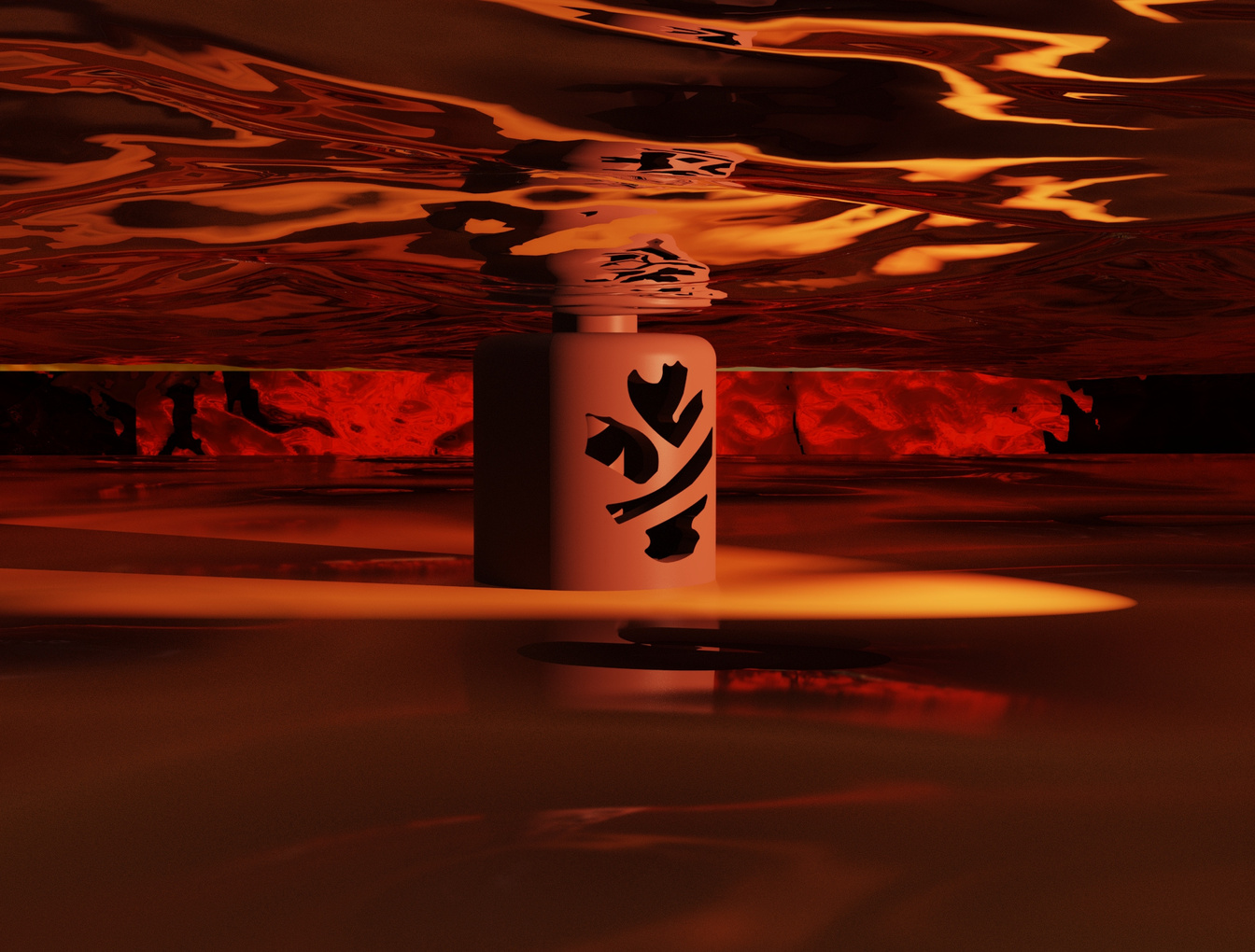

Fish swimming into the shelter and predators not able to get into the shelter due to its size
Release
Protection
Steps
1
2
3

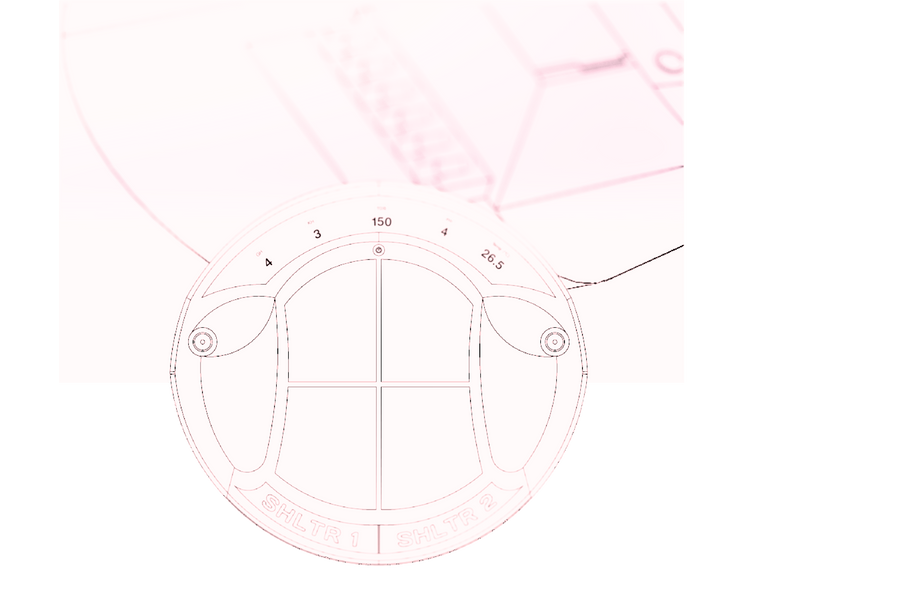

Different camera views of the carrier and in the shelters on the controller’s screens

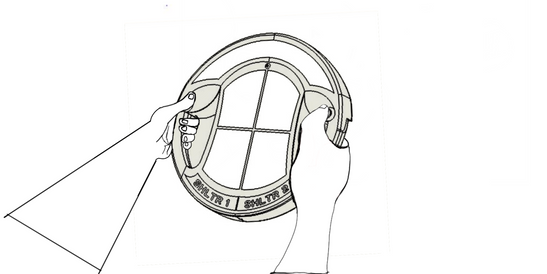

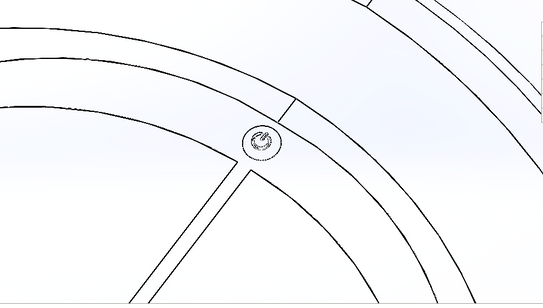

Press on the power button on the contoller
Right joystick for acceleration or reverse
6
5
4

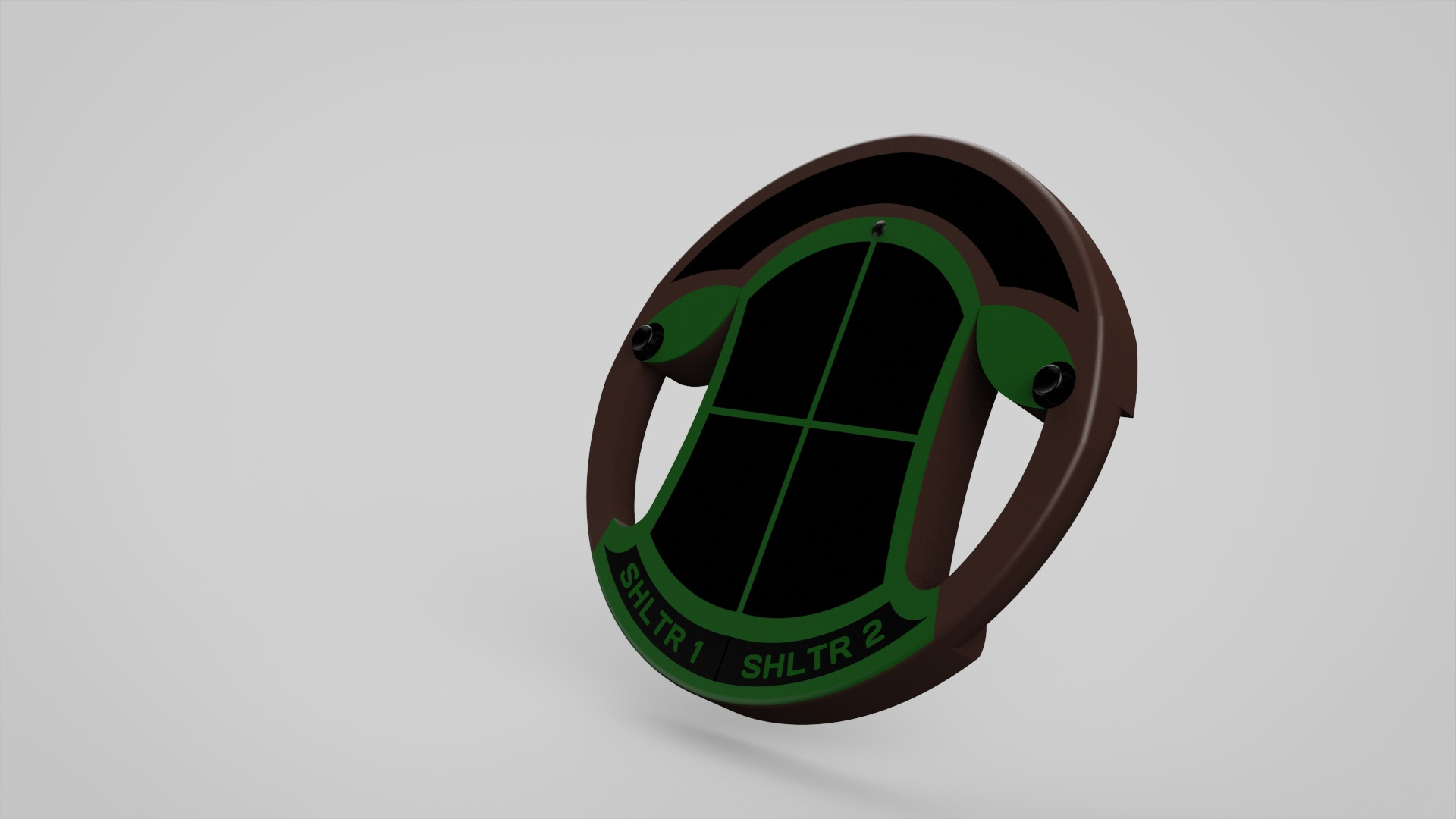

Press on either of the button “SHLTR 1” or “SHLTR 2” to release the shelter into the water
Water parameters monitor with statistics showed on the controller’s top screen
Left joystick for Maneuverability

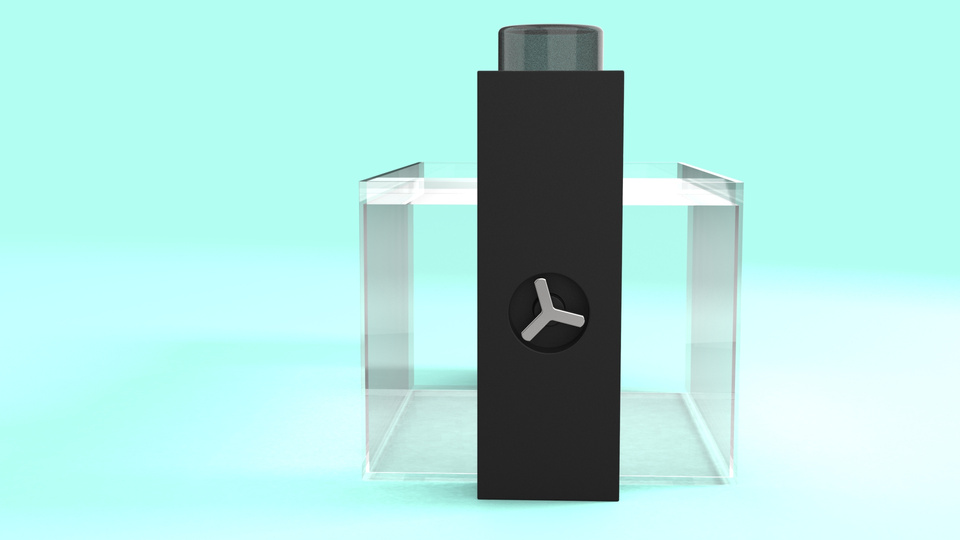

SIMPLE AQUA

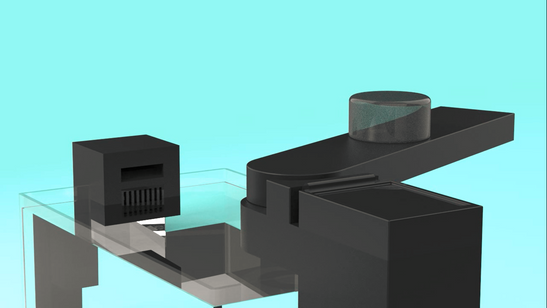

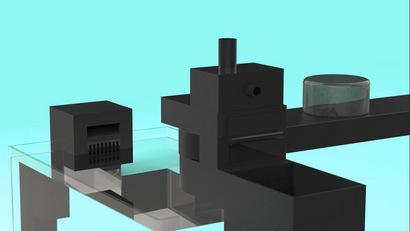

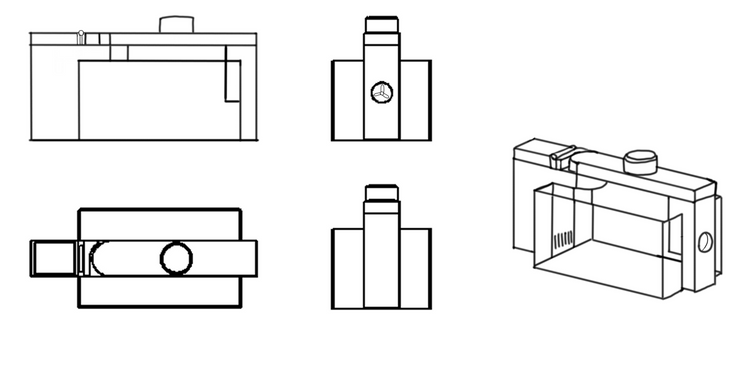

It is an aquarium kit that can help people who are into the fish keeping hobby but would have a difficult time of maintaining the aquarium and taking care of their pet fish due to their busy schedule.

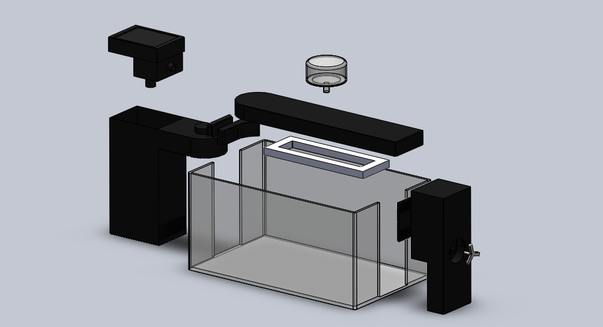

Design features
Unique Waterfall Style
Filter Outlet
Overhead LED Light
Can be set by the timer
on the App

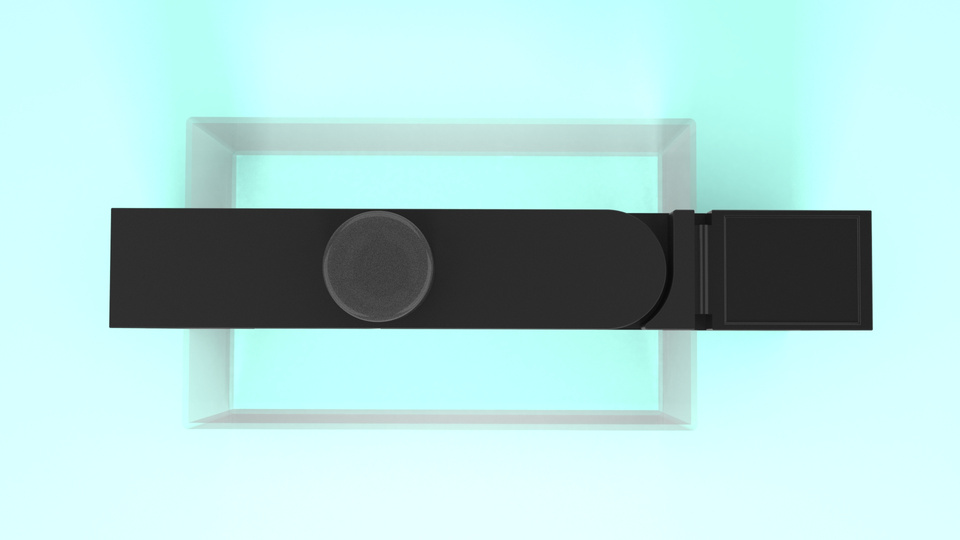

The overhead can be
turned 90 degrees out to put in or take out anything from inside the aquarium

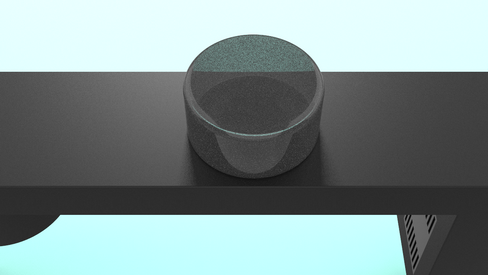

Automatic Fish Food Feeder
Can be set by the timer
on the App
Multiple Slots of
Filter Intakes

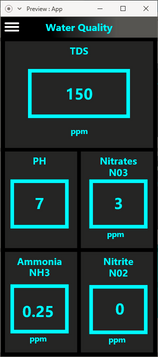

Sensors that monitor the water quality and the data will be bluetooth to the app

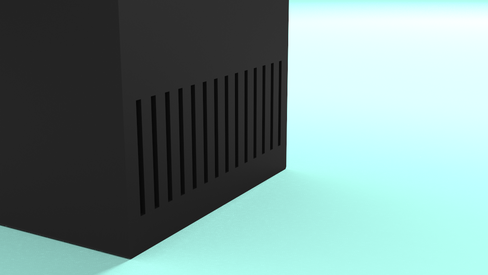

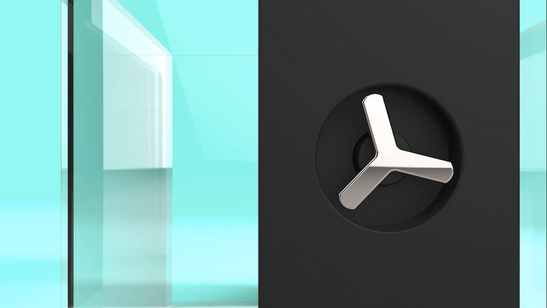

A fan to cool down the water

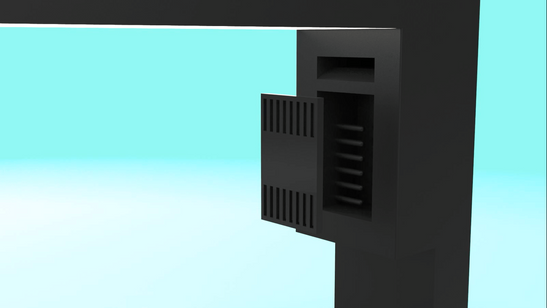

The filter pump can be
open up to clean out the filter

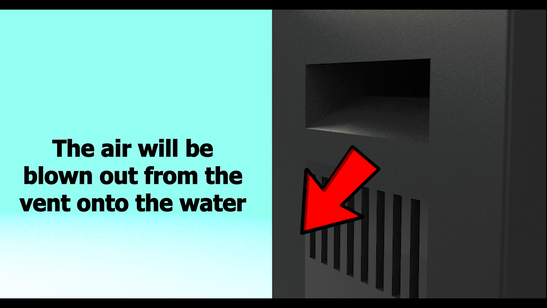

The air will blow out air onto the water from the fan

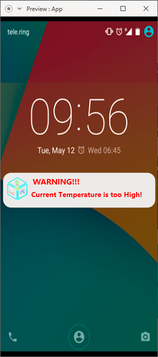

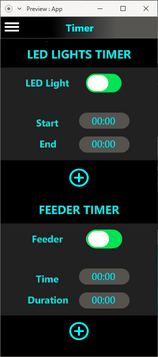

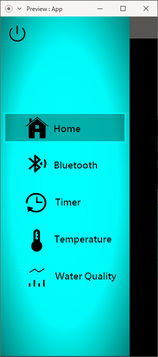

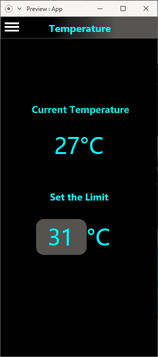

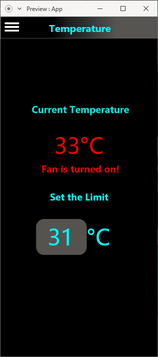

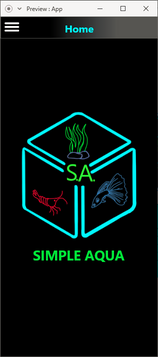

AppLication

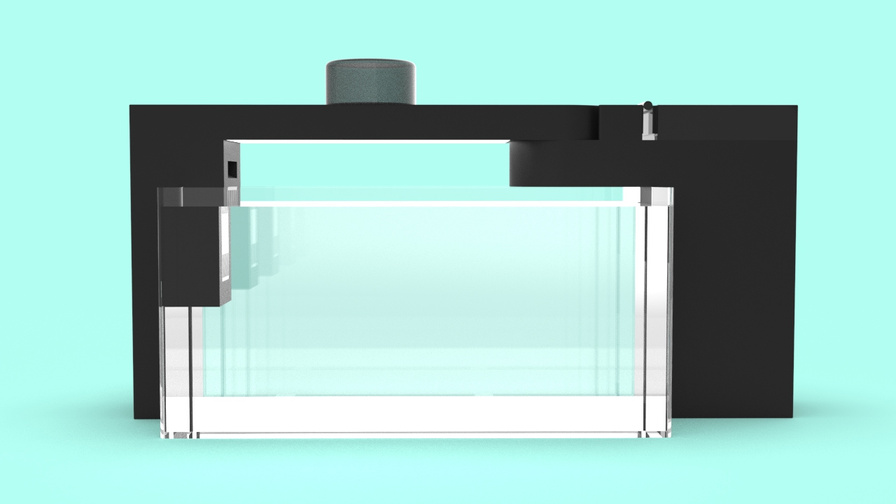

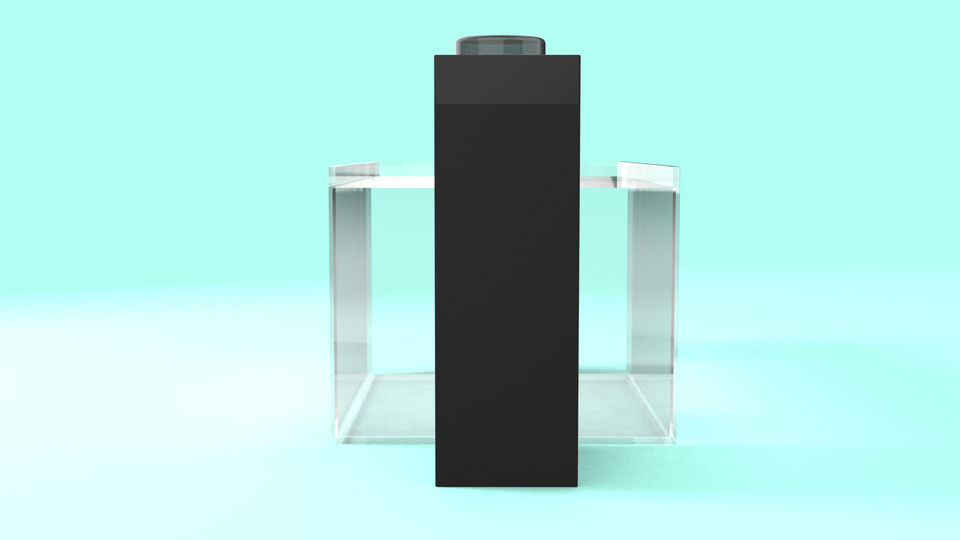

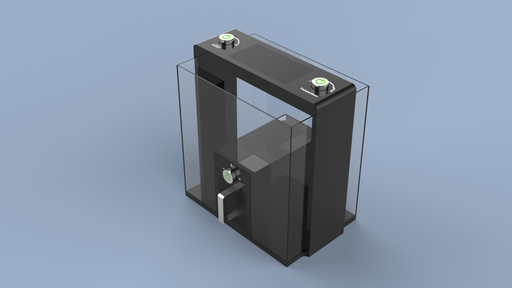

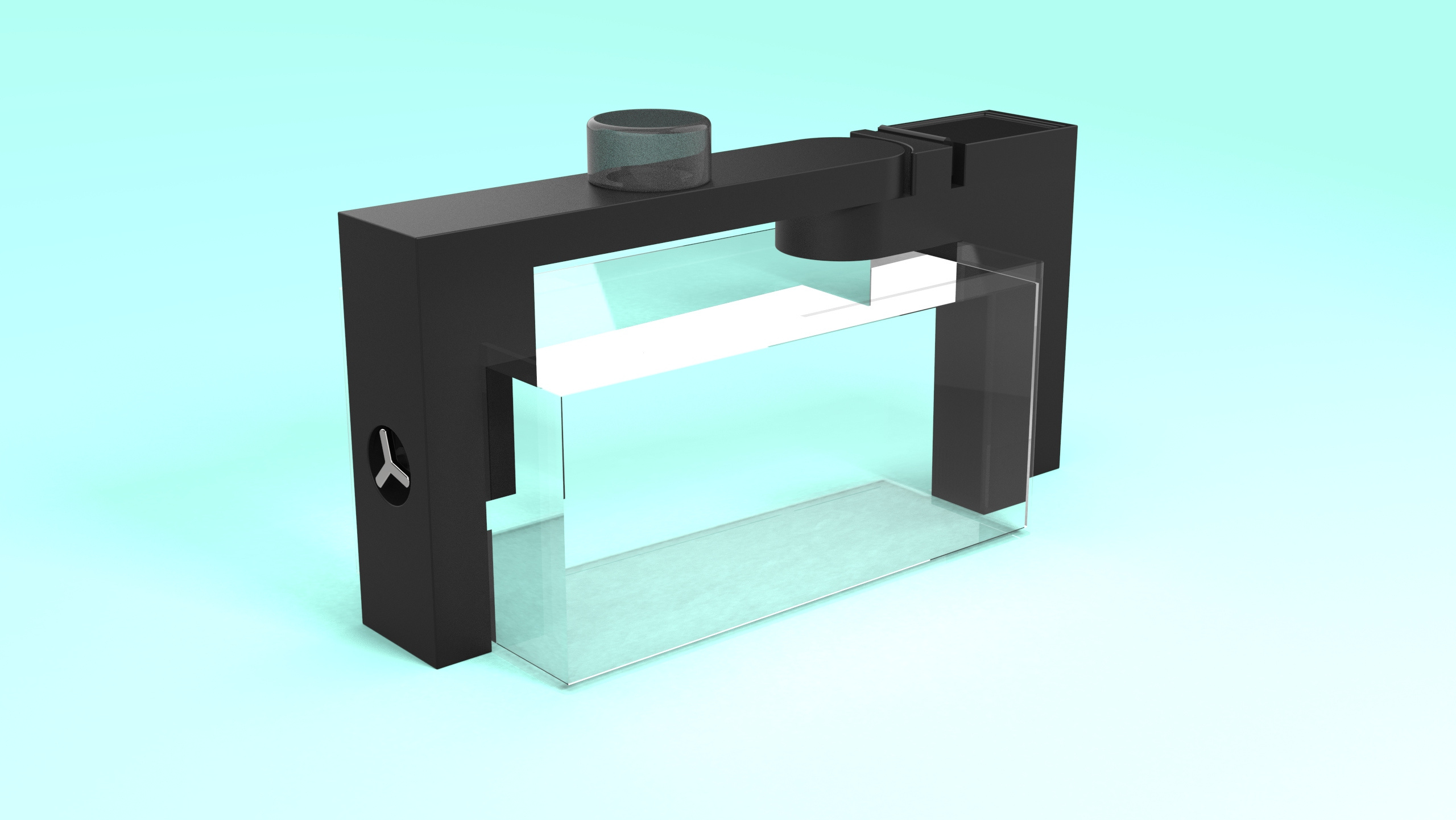

3D Render

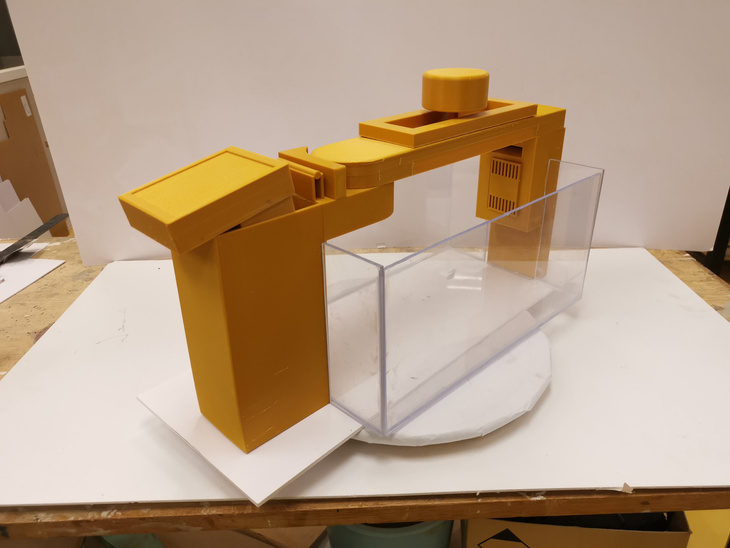

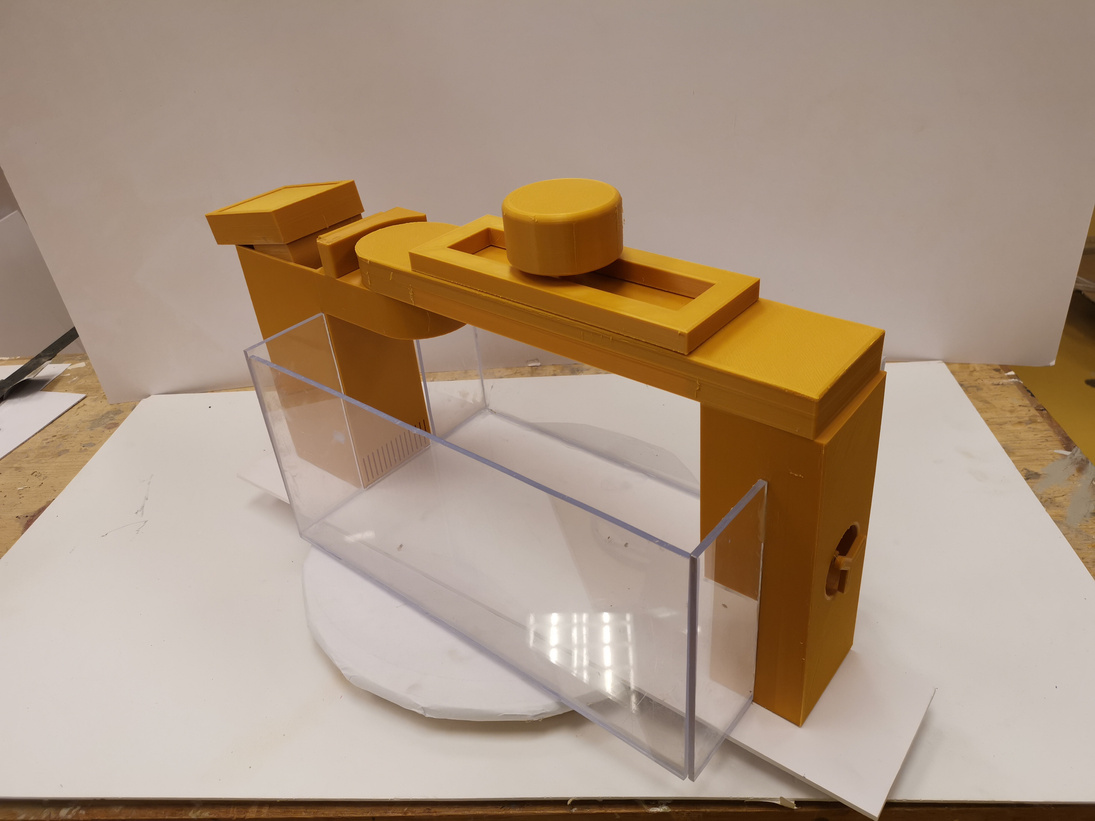

Scale 1:1 Mock Up

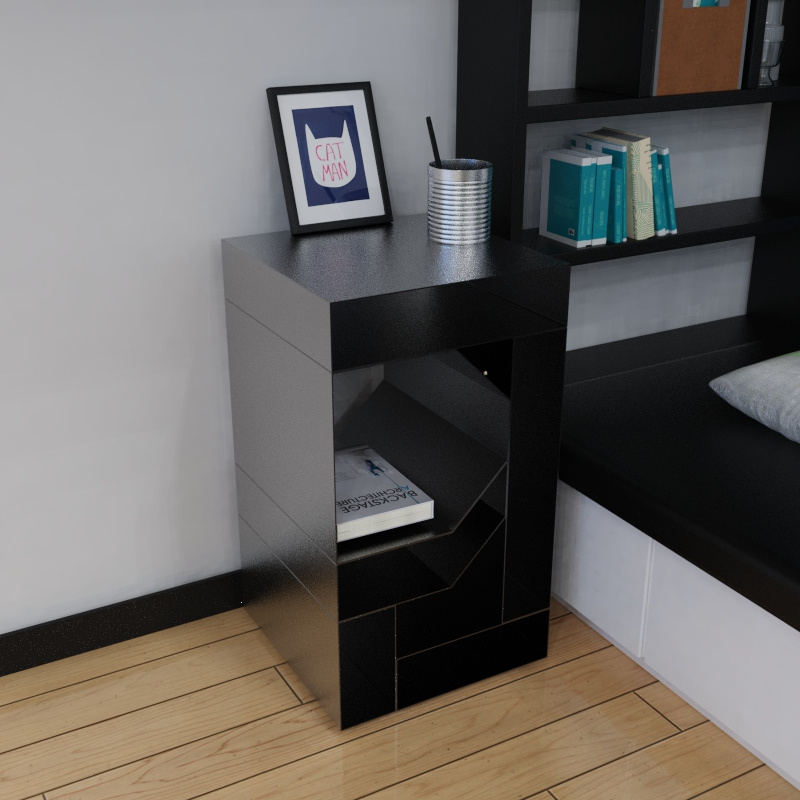

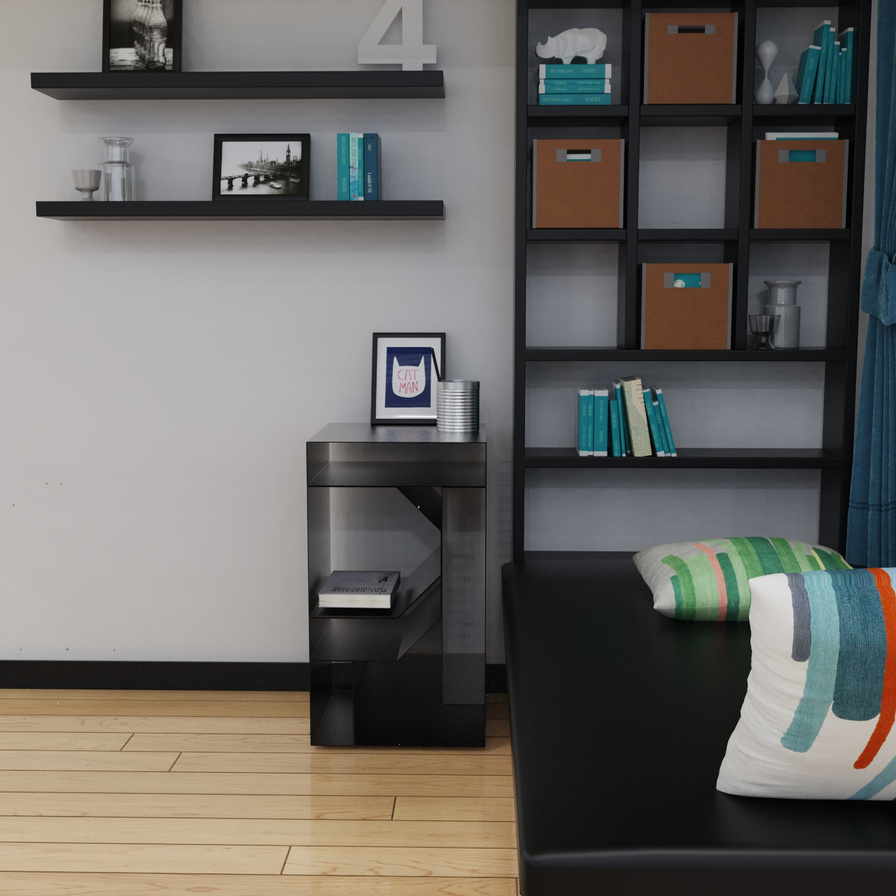

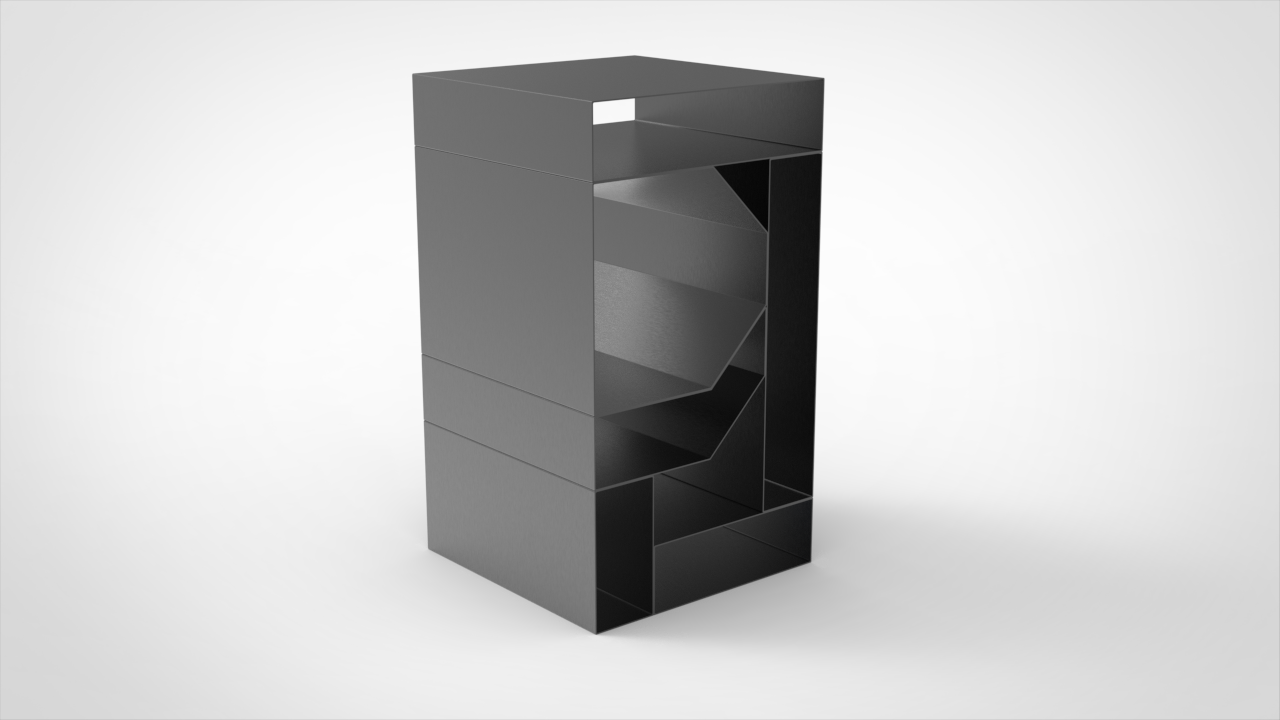

CubiSteps Table
A side table with elements taken from Cubism with elements taken from infrastructure and staircases. It is a functional side table that can store small or big products beside for example a bed.

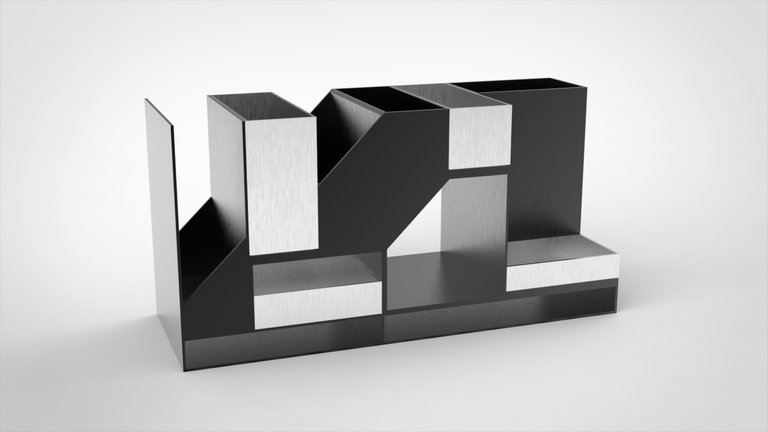

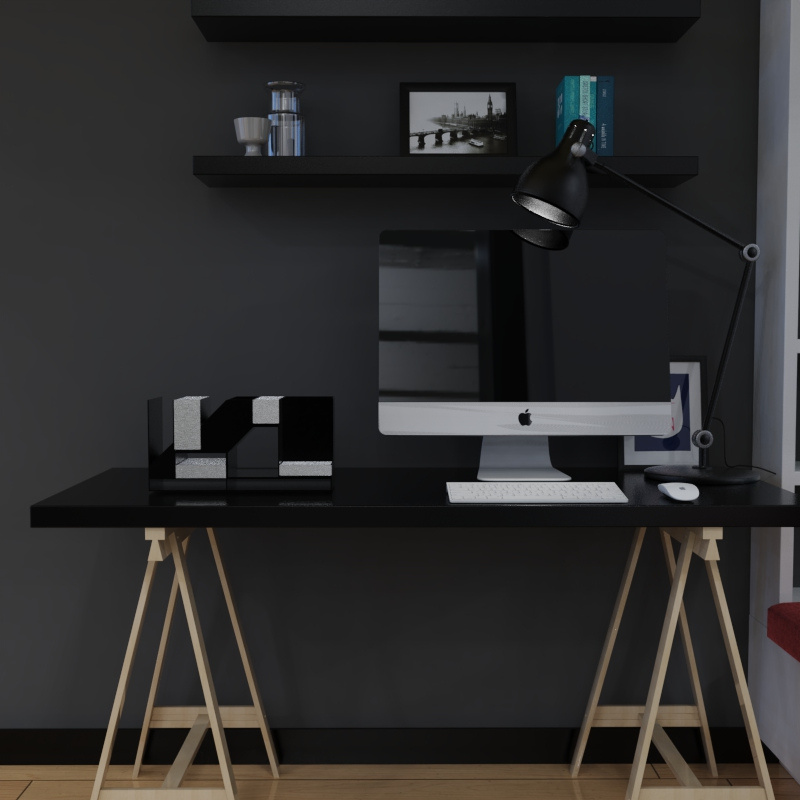

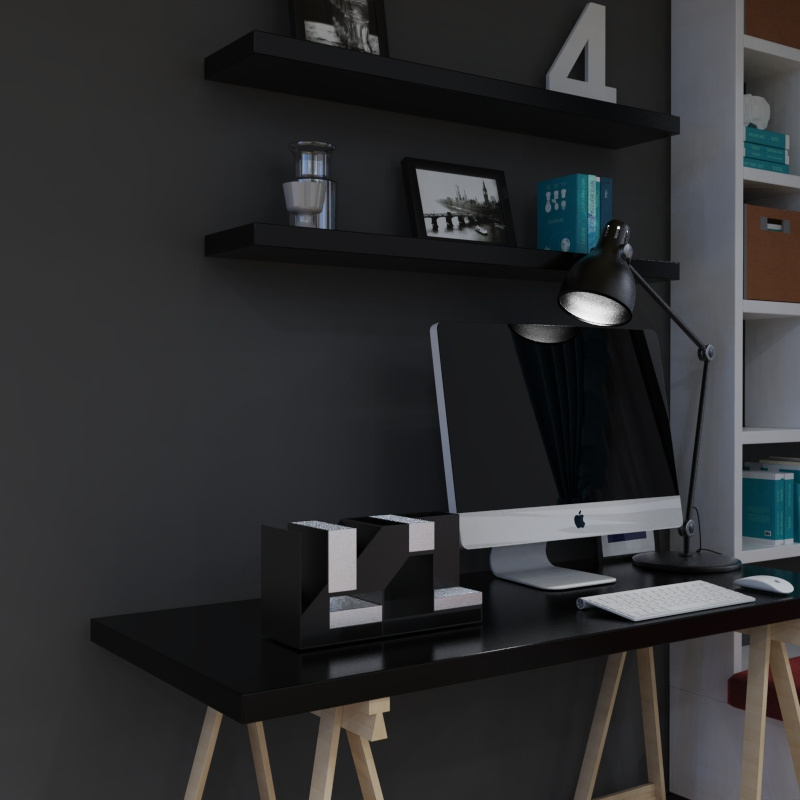

CubiFrame Desk Organizer
A desktop storage or a desk organizer that also has elements taken from Cubism with elements taken from infrastructure and staircases. It conveys a modern and artistic flair while also suggesting it is a functional desk organizer that you can put smaller A5 size books to some ordinary stationaries no matter big or small.
